Pharmaceutical Scraper Bottom Discharge Centrifuge
Bag Lifting Top Discharge Filter System
Model PPTD dewatering and drying centrifuge are Plate top discharge, intermittent operation filtrating equipment.
The material is fed into the drum at the top; under the action of the centrifugal force field., the liquid-phase passes through the filter medium and the discharged out of the machine, while the solid phase material is retained inside the drum and, after the machine is stopped, the material is discharged
from the top. The centrifuge has such features as simple structure, easy operation, no easy breakage
of material as well as good versatility.
The surface of the parts contacting the material is smooth, flat, easy to clean (or sterilize), corrosion-resistant. Non-reactive with medication and non-adsorptive.
The centrifuge’s drum, class liner bag and exterior and interior of the casing have all
undergone polishing treatment.The open hinged cover facilitates the discharging and maintenance.
With the cover equipped with feed pipe, washing pipe, explosion proof lamp, wide angle vision glass, etc.
(depends on client's needs) It is possible to monitor the whole process of feeding, separating and washing.
Features
- No-base installation
- Reasonable design and new and simple structure
- Basic platform is the work operation platform
- Reduced labor and high efficiency
- Simple operations and easy cleaning
- Outside and inside surface of rotary drum is polished
- All of fasteners are made of stainless steel
- Transmission section is sealed with stainless steel
- The whole machine meets GMP hygienic standards(Customerized)
Main Technical Parameters
| Type | Drum | Power (kw) | Weight (kg) | Overall size (L × W × H) (mm) |
| Diameter (mm) | Volume (L) | Capacity (kg) | Speed (rpm) | G-force |
| PPTD-10 | 300 | 5 | 10 | 2500 | 1050 | 1.1 | 180 | 890 × 600 × 500 |
| PPTD-25 | 450 | 20 | 25 | 1900 | 910 | 1.5 | 250 | 980 × 650 × 870 |
| PPTD-50 | 600 | 40 | 50 | 1500 | 756 | 3 | 800 | 1300 × 880 × 900 |
| PPTD-135 | 800 | 100 | 135 | 1200 | 645 | 5.5 | 1300 | 1800 × 1200 × 1140 |
| PPTD-135-NA | 800 | 100 | 135 | 1500 | 1008 | 7.5 | 1300 | 1800 × 1200 × 1140 |
| PPTD-200 | 1000 | 150 | 200 | 1000 | 560 | 7.5 | 2000 | 2050 × 1500 × 1220 |
| PPTD-200-NA | 1000 | 150 | 200 | 1200 | 806 | 11 | 2000 | 2050 × 1500 × 1220 |
| PPTD-300 | 1200 | 250 | 300 | 800 | 431 | 11 | 2500 | 2350 × 1650 × 1370 |
Product details

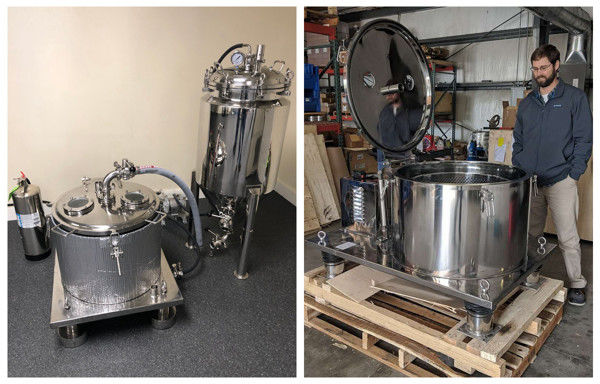

Customer Site
Processing Equipment
Packing
