20000 L / H High Speed Disc Stack Centrifuges Milk Disc Separator with PLC Controller
Brief introduction:
Model PDSM20000-CN separator is the newest generation milk separator, mainly used to clarify of milk.
The model is also used to separate similar material in the industry of juice, beverage, Chinese
traditional medicine and chemical industry etc.
The machine adopts automatic control, it has the advantages such as high efficiency, low materiel consumption, convenient operation and economic maintenance cost. It adopts small piston structure for gaining variable discharging capacity, and PLC control both partly and fully discharging in order to get rid of sediment.
The clear liquid is pumped out by centripetal pump, the sludge is discharged automatically and partly.
The machine is one kind of rotary machine with high speed. After accurate dynamic balancing,
it can run for long time with low vibration, safety and security.
The design, product and acceptance are conformed to the standard of JB/T8103.3 Disc
Separator-Part 3: Milk disc separator.

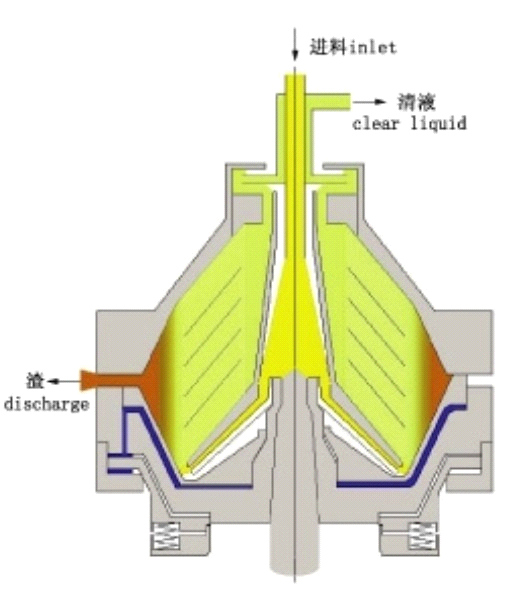

Working principle:
Dimensions:
Installation notice:
1. For maintenance and repair, please leave enough space around the separator when install it.
2. The installation base should be firm and level.
3. All the pipes connecting with the separator should be flexible pipe.
4. The operation water of the separator must be soft water, the pressure of which is between 0.025
and 0.03Mpa.
Main technical parameters:
| Discharging type | Variable capacity discharge |
| Fresh milk capacity | L/h | 20000 |
| Impurity in milk after separation | Mg/kg | 1 |
| Outlet pressure of clear liquid | Mpa | ≤ 0.2 |
| Motor power | Kw | 22 (380V/50Hz/3P) |
| Net weight | kg | 1580 |
| Gross weight | kg | 1800 |
| Overall dimension (L × W × H) | mm | 1479 × 1289 × 1583 |
| Packing size (L × W × H) | mm | 1900 × 1570 × 2050 |
