Disc Stack Large Capacity Centrifugal Direct-linked Shaft Centrifuge
Intruduction
Disc Stack Large Capacity Centrifugal machine is platform structure, and Welding are adopted between shell bucket and base plate or pedestal, bearing seat welded with lid together is connected with housing by flange and fixed by bolts. It is equipped with feeding pipe, washing pipe, sight glass, observation lamp, product level detector,man hole etc.
Technical Parameter
| Model | PPSBD-1250MDL | PPSBD-1500MDL | PPSBD-1600MDL | PPSBD-1600MDL(A) |
| Loading capacity(Kg) | 460/580 | 720 | 1200 | 1300 |
| Speed(rpm) | 970 | 850 | 850 | 850 |
| Maximum Separating factor | 657 | 605 | 645 | 646 |
| Motor power(Kw) | 22/30 | 37 | 45 | 45 |
Main Characteristics
1. Upper setting is adopted on motor design which connects directly with main shaft by coupling it will avoid powder pollution because of belt friction during common transmission.
2. Welded structure is adopted between housing and base. It has advantage of high intensity,simple and tight structure and so on.
3. Frequency speed regulation is adopted to ensure a stable start it can protect motor from over effectively.
4. PLC control is adopted to ensure automatic running.
5. Gas assisted scraper device is adopted to remove remnant filter cake. It can improve the effect of separation.
6. L(P)GZIMDU is equipped with liquid state damp shock absorber which can ensure stable running and convenient operation
Centrifuge adopts no basis installation,which can make installation and maintenance conveniently.
Standard Configure
PLC plus frequency conversion control, dynamic braking,contact product level detection. Stand explosive-pr motor: Spot Explosive-proof operation case. Hydraulic combined scraper.
Main MaterialFeatures
Classis and lid adopt Q235 lined with stainless steel, bearing seat adopts cast steel lined with stainless steel, drum (its bottom is cast steel lined with stainless steel), shell cover, pipe are all made of stainless steel.
Material can be chosen according to customers' requirement of erosion proof:316.316L,904L,C2205321,304.ta2.Haynes alloy, lined rubber, spay halar etc.
Standard Structure Form
L[P) GZ is platform structure and ) Welding are adopted between shell bucket and base plate or pedestal, bearing seat welded with lid together is connected with housing by flange and fixed by bolts. It is equipped with feeding pipe, washing pipe, sight glass, observation lamp,product level detector man hole etc.
Configuration
1. Explosive-proof frequency conversion or common motor(permanent torque).
2. Pneumatic assisted scrapper
3. Regenerative braking, common or explosive-proof touching screen
4. Vibration protection, nitrogen protection speed monitor
5. Oxygen-containing monitor or nitrogen pressure control
6. Liquid seal of mother liquid outlet
7. CIP device, gas auxiliary scrapper device
8. Non-contact product level detector
9. Automatic residual cakes removing device
10. Other requirements of configuration

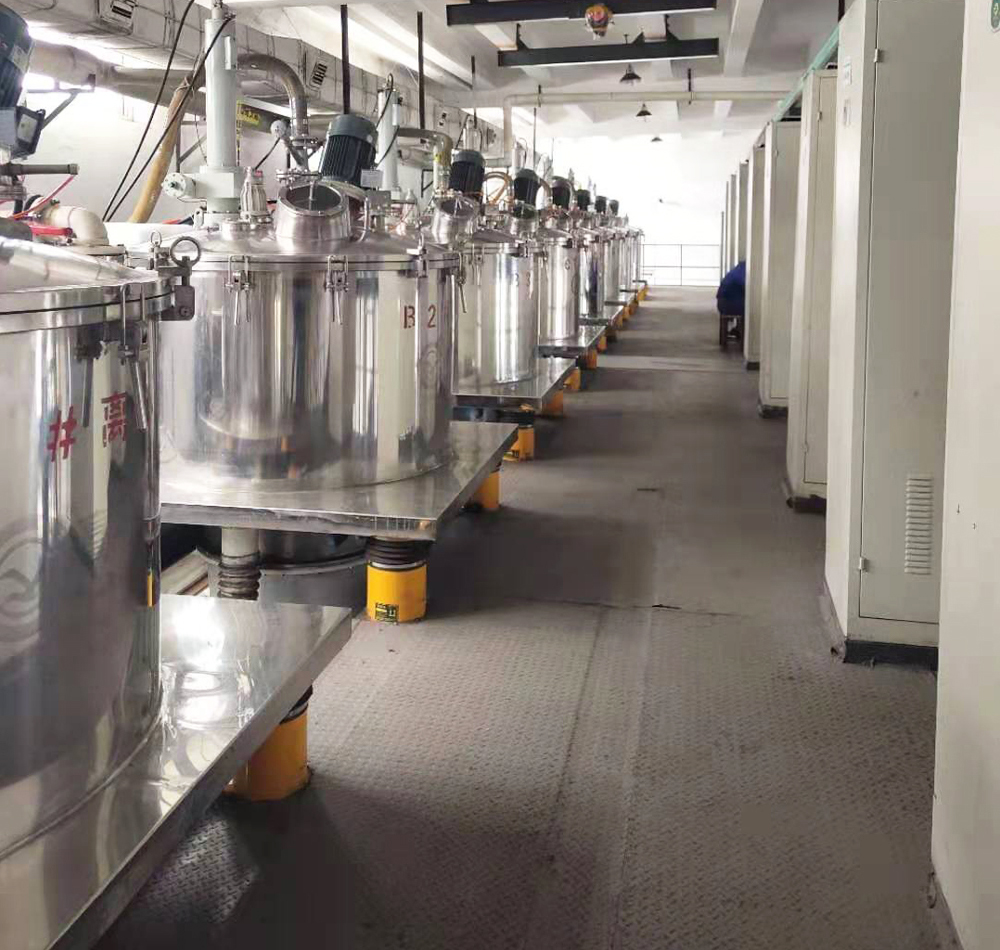

Photos at site
