Duplex Stainless Steel 2 Stage Pusher Salt Centrifuge Machine
Quick skimming
Application: Sea salt and mineral salt dewatering
Advantages: Full automatic, large capacity
Bearing: Famous brand, such as SKF
MOC: SS316, DSS2205
Advanced technology: Sulzer
Separation effection: Moisture in the cake less than 4%
Description
Model PP 2-stage pusher centrifuge is a kind of perforated basket centrifuge, both continuous and effective. The feeding material enters into the feeding pipe and distributed continuously and evenly into the first stage basket. Most of the mother-liquor in the feed, act on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocates, pushing the formed product cake into the second stage basket. The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed. Afterward, the cake is continuously discharged out of the basket. In case of high purity for the solid product, effective washing can be carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged separately.
Technical Parameters of PP-40
| Equipment | 2 stage pusher centrifuge |
| Spec. | PP-40 | Qty | set |
| Technical parameters |
| 1 | Basket diameter | 290/360 mm |
| 2 | Basket Rotate Speed (Max) | 2500r/min |
| 3 | Stroke of Pusher Mechanism | 40-80times/min |
| 4 | First, second stage mesh aperture (as per the material) | mm, mm |
| 5 | Separation Factor | 586-728 |
| 6 | Main motor | Spec/Power | 11-15KW |
| | | Installation type | Horizontal |
| | | Protection class | IP54/F1 |
| | | Electrical power | 3 phase 380V/50Hz AC |
| 7 | Oil pump motor | Spec/Power | 5.5-7.5KW |
| | | Installation type | Horizontal |
| | | Protection class | IP54/F1 |
| | | Electrical power | 3 phase 380V/50Hz AC |
| 8 | Oil pump | Spec. | NB4C100F |
| | | outflow | 100ml/turn |
| | | Maximum pressure | 2.5Mpa |
| 9 | Overall size | 2346mm×1090mm×1006mm |
| 10 | Weight | 2600kg |
| 11 | Shell type | open |
| 12 | Output | 3T-5T/h(sea salt) |
| 13 | Moisture content after separation: | 3-4%(sea salt) |
| 14 | Object processed | Mineral salt/Sea salt |
Technical Parameters of PP-50
| Equipment | 2 stage pusher centrifuge |
| Spec. | PP-50 | Qty | set |
| Technical parameters |
| 1 | Basket diameter | 438/500 mm |
| 2 | Basket Rotate Speed (Max) | 2000rpm |
| 3 | Stroke of Pusher Mechanism | 40-80times/min(can be adjusted) |
| 4 | First, second stage mesh aperture (as per the material) | mm, mm |
| 5 | Separation Factor | 1119 |
| 6 | Main motor | Spec/Power | 45KW |
| Installation type | Horizontal |
| Protection class | IP54/F1 |
| Electrical power | 3 phase 380V/50Hz AC |
| 7 | Oil pump motor | Spec/Power | 22KW |
| Installation type | Horizontal |
| Protection class | IP54/F1 |
| Electrical power | 3 phase 380V/50Hz AC |
| 8 | Oil pump | Spec. | SNE/A280 |
| outflow | 480ml/turn |
| Maximum pressure | 2Mpa |
| 9 | Overall size | 3660mm×1420mm×2078mm |
| 10 | Weight | 4400kg |
| 11 | Shell type | open/seal(can be select) |
| 12 | Output | ≥12T/h(sea salt) |
| 13 | Moisture content after separation: | 4%(sea salt) |
Technical Parameters of PP-60
| Equipment | 2 stage pusher centrifuge |
| Spec. | PP-60 | Qty | set |
| Technical parameters |
| 1 | Basket diameter | 560/630 mm |
| 2 | Basket Rotate Speed (Max) | 1360 r/min |
| 3 | Stroke of Pusher Mechanism | 70-80 times/min |
| 4 | First, second stage mesh aperture (as per the material) | mm, mm |
| 5 | G-force | 570-642 |
| 6 | Main motor | Spec/Power | 55KW |
| Installation type | Horizontal |
| Protection class | IP54/F1 |
| Electrical power | 3 phase 380V/50Hz AC |
| 7 | Oil pump motor | Spec/Power | 30KW |
| Installation type | Horizontal |
| Protection class | IP54/F1 |
| Electrical power | 3 phase 380V/50Hz AC |
| 8 | Oil pump | Spec. | NB5D140F |
| outflow | 140ml/turn |
| Maximum pressure | 8Mpa |
| 9 | Overall size | 3127mm × 1700mm × 1955mm |
| 10 | Weight | 4860kg |
| 11 | Shell type | open |
| 12 | Output | ≥15T/h (Mineral salt) |
| 13 | Moisture content after separation: | ≤3% |

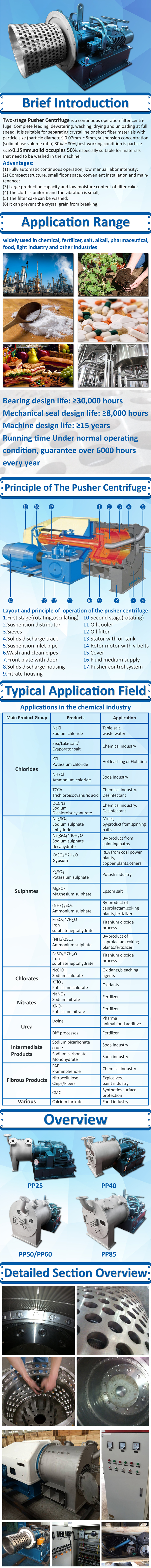

More Pictures
