Spare Parts For Salt Centrifuge Stainless Steel Screen Segment For Ferrum Pusher Centrifuge

Name: Spare Parts For Salt Centrifuge Stainless Steel Screen Segment For Ferrum Pusher Centrifuge
Brand: Peony
Price: 1 USD

China Spare Parts For Salt Centrifuge Stainless Steel Screen Segment For Ferrum Pusher Centrifuge wholesale

Brand Name : Peony

Model Number : PP

Certification : ISO9001,ISO,CE,SGS

Place of Origin : China

MOQ : 1

Payment Terms : T/T, L/C, Western Union

Supply Ability : 20 sets/month

Delivery Time : 90 days

Packaging Details : Standard export packings

Application : Sea salt, mineral salt, copper sulphate dehydration

Sieve slot : Customerized

MOC : SS304,SS316,DUPLEX SS

Control : PLC

Structure : Ferrum

Operation : Continuous

Temperature allowed : Below 105degree

Discharge : Pushing type

Electrical elements : Famous brand

Humidity in the cake : Humidity in the cake

Voltage : Customized

Condition : New

Weight : According to model

Product type : centrifuge separator,Pusher Centrifuge Same as Ferrum

Dimension(l*w*h) : Depend on the model

Type : Centrifuge,Fully Automatic,Extraction Equipment

Warranty : 12 months

After-sales service provided : Engineers available to service machinery overseas,Online support,commissioning and training,Video technical support

Material : 304/316L stainless steel,Titanium

Name : decanter centrifuge,2 phase new salt product decanter centrifuge,Salt industrial centrifuge machine

Moc : SS304,SS316,Stainless steel

Machine type : Centrifuge

Contact Now

Description

PP series Two-stage Pusher Centrifuge is a kind of perforated basket centrifuge, both continuous and effective. The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket.

Spare Parts For Salt Centrifuge Stainless Steel Screen Segment For Ferrum Pusher Centrifuge

It is suitable for the material with solid content 40-60%,particle size larger than 0.15mm,widely used in the mineral salt ,sea salt and chemical field as CuSO4.5H2O,etc.

Advantages
1.Big capacity with full automatic operation
2.Low moisture in the cake after separation
3.Robster material to resit the corrosion,DSS material will be used as optional
4.SKF bearing and strong collocation ,with over than 15years working life
5.CE certificate

Technical parameters

Model	PP-40	PP-50	PP-60
Basket diameter (mm)	290/360	438/500	560/630
Stroke of pusher mechanism (times/min)	40-80	40-80	70-80
Machine speed (rpm)	2500	2000	1360
Operative oil pressure (Mpa)	2.5	2	8
Motor of oil pump (kw)	5.5-7.5	22	13-30
Main motor (kw)	11-15	37-45	55
Output (t/h)	5-7	12	20
Sieve slot	To be decided
Operation temp. (°C)	Below 105	Below 105	Below 105
Overall dimension (mm)	234610901006	366014202078	312717001955
Weight (kg)	2600	4400	4860

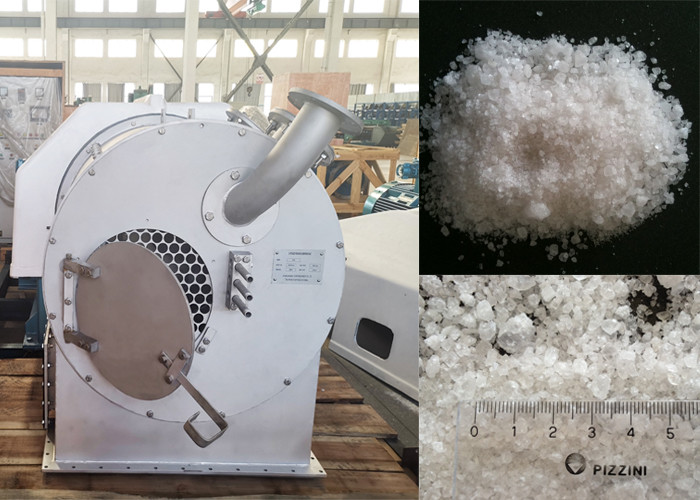

Pictures
Spare Parts For Salt Centrifuge Stainless Steel Screen Segment For Ferrum Pusher Centrifuge

Customer

Spare Parts For Salt Centrifuge Stainless Steel Screen Segment For Ferrum Pusher Centrifuge
