Two Stage Pusher Centrifuge EPS Industry Centrifuge Spare Parts Of Ferrum Design

Name: Two Stage Pusher Centrifuge EPS Industry Centrifuge Spare Parts Of Ferrum Design
Brand: Peony
Price: 1 USD

China Two Stage Pusher Centrifuge EPS Industry Centrifuge Spare Parts Of Ferrum Design wholesale

Brand Name : Peony

Model Number : PP

Certification : ISO9001,ISO,CE,SGS

Place of Origin : China

MOQ : 1

Payment Terms : T/T, L/C, Western Union

Supply Ability : 20 sets/month

Delivery Time : 90 days

Packaging Details : Standard export packings

Application : Sea salt, mineral salt, copper sulphate dehydration

Sieve slot : Customerized

MOC : SS304,SS316,DUPLEX SS

Control : PLC

Structure : Ferrum

Operation : Continuous

Temperature allowed : Below 105degree

Discharge : Pushing type

Electrical elements : Famous brand

Humidity in the cake : Humidity in the cake

Voltage : Customized

Condition : New

Weight : According to model

Product type : centrifuge separator,Pusher Centrifuge Same as Ferrum

Dimension(l*w*h) : Depend on the model

Type : Centrifuge,Fully Automatic,Extraction Equipment

Warranty : 12 months

After-sales service provided : Engineers available to service machinery overseas,Online support,commissioning and training,Video technical support

Material : 304/316L stainless steel,Titanium

Name : decanter centrifuge,2 phase new salt product decanter centrifuge,Salt industrial centrifuge machine

Moc : SS304,SS316,Stainless steel

Machine type : Centrifuge

Function : Liquid Liquid soild Centrifge

Contact Now

Two Stage Pusher Centrifuge EPS Industry Centrifuge Spare Parts Of Ferrum Design

Description

PP series Two-stage Pusher Centrifuge is a kind of perforated basket centrifuge, both continuous and effective. The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket.

Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket .

Two Stage Pusher Centrifuge EPS Industry Centrifuge Spare Parts Of Ferrum Design

Advantages
1.Big capacity with full automatic operation
2.Low moisture in the cake after separation
3.Robster material to resit the corrosion,DSS material will be used as optional
4.SKF bearing and strong collocation ,with over than 15years working life
5.CE certificate

Technical parameters

Model	PP-40	PP-50	PP-60
Basket diameter (mm)	290/360	438/500	560/630
Stroke of pusher mechanism (times/min)	40-80	40-80	70-80
Machine speed (rpm)	2500	2000	1360
Operative oil pressure (Mpa)	2.5	2	8
Motor of oil pump (kw)	5.5-7.5	22	13-30
Main motor (kw)	11-15	37-45	55
Output (t/h)	5-7	12	20
Sieve slot	To be decided
Operation temp. (°C)	Below 105	Below 105	Below 105
Overall dimension (mm)	234610901006	366014202078	312717001955
Weight (kg)	2600	4400	4860

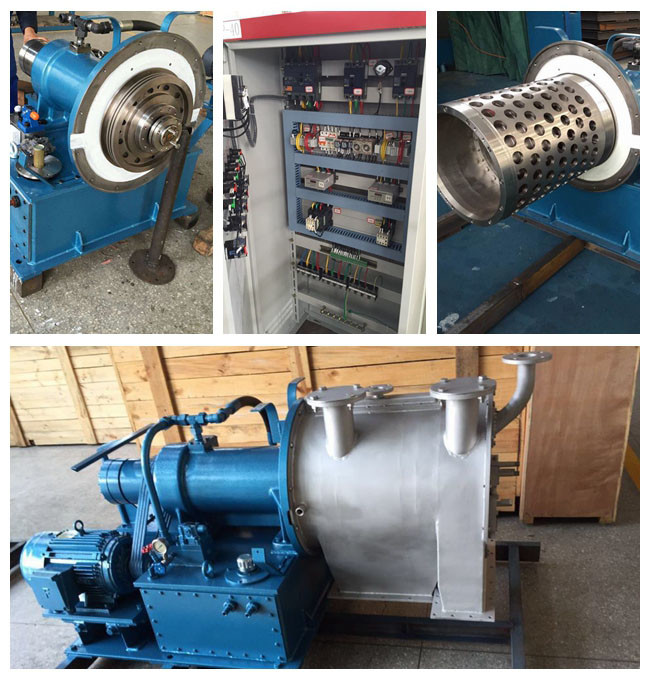

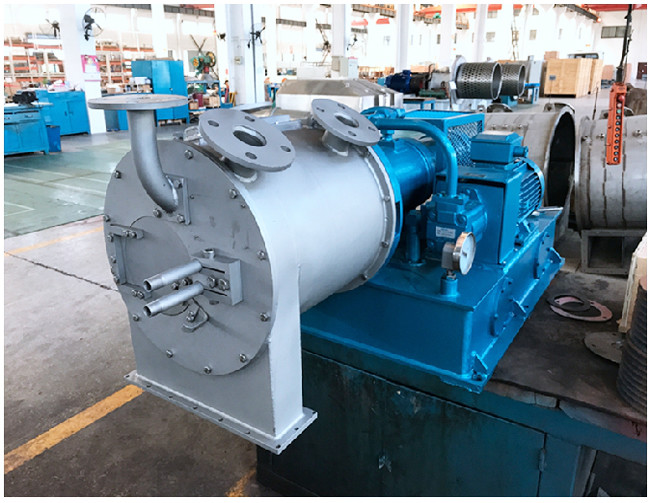

Pictures

Two Stage Pusher Centrifuge EPS Industry Centrifuge Spare Parts Of Ferrum Design
