Solids-retaining Automatic Disc Stack Centrifuges Diesel Oil Cleaning Disc Centrifuge Separator Oil Water
Description
Model PDSD solids-retaining centrifugal separator is mainly used to remove water and mechanical impurities from fuel oil, lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the diesel engine and other machine, and prolong engine life. The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid.
The machine is manual slag discharge. It has the advantages of high efficiency, low oil consumption, convenient operation and economic maintenance cost.
The clear oil and dirty water are pumped out by centripetal pump, the sludge is discharged automatically and fully.
The machine is one kind of rotary machine with high speed. After accurate dynamic balancing, it can run for long time with low vibration, safety and security.
Disc centrifuge, disc separator -Whole unit
With built-in feed pump, frames, valves and instruments, control panel etc;
One set of spare parts, one set of special tools;
Heater is optional, steam, conduction oil, electric type available.
Main Technical Specification
Condition for mineral oil separation and actual capacity (refer to the chart)
| oil types | heavy diesel oil | lubrication oil |
| SAE30, 40 | detergence oil | steam turbine oil |
| kinematical viscosity(mm2/s) | 13 | 20.5 | 36.2 | 80 | 100-120 | 61.2-74.8 |
| 50°C | 40°C | 40°C |
| density/(kg/m3)(20°C) | less than 900 | 900-991 | 880-900 | less than 900 |
| separating temperature (°C) | 40 | 60 | 80 | 80-95 |
| recommended capcity (L/h) | 900-5000 | 300-4500 |
| oil types | Fuel oil |
| Fuel oil | Heavy fuel oil |
| kinematical viscosity(mm2/s) | 1.9-5.5 | 5.5-24 | 120 | 180 | 380 |
| 40°C | 50°C |
| density/(kg/m3)(20°C) | less than 900 | 900-991 |
| separating temperature (°C) | Normal temperature,40-60degree best | 90-98 |
| recommended capacity (L/h) | From 650L/H to 5000L/H depends on different oil and working temperature. |
Note: Refer to the aboved chart, we will provide suitable capacity separator.

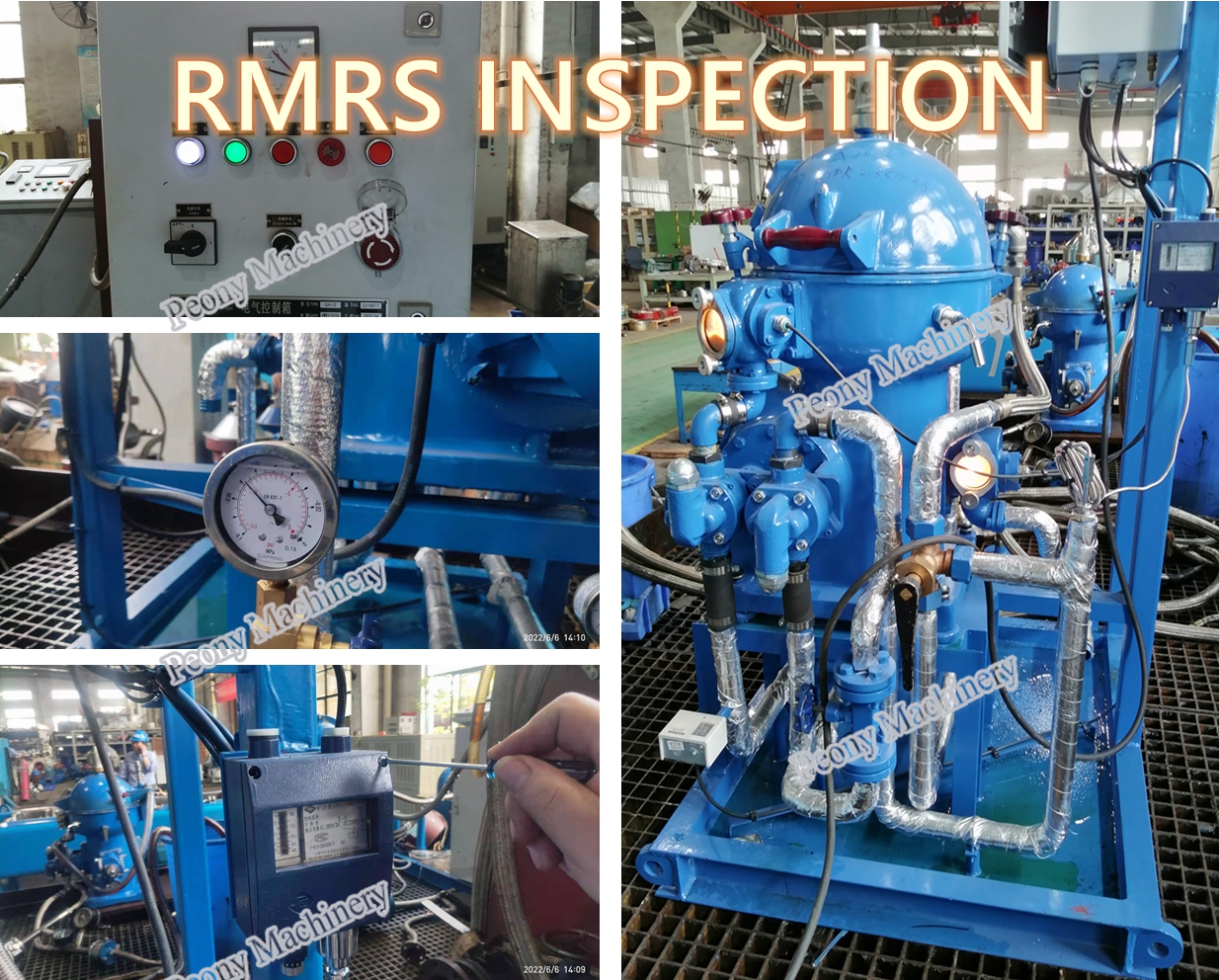

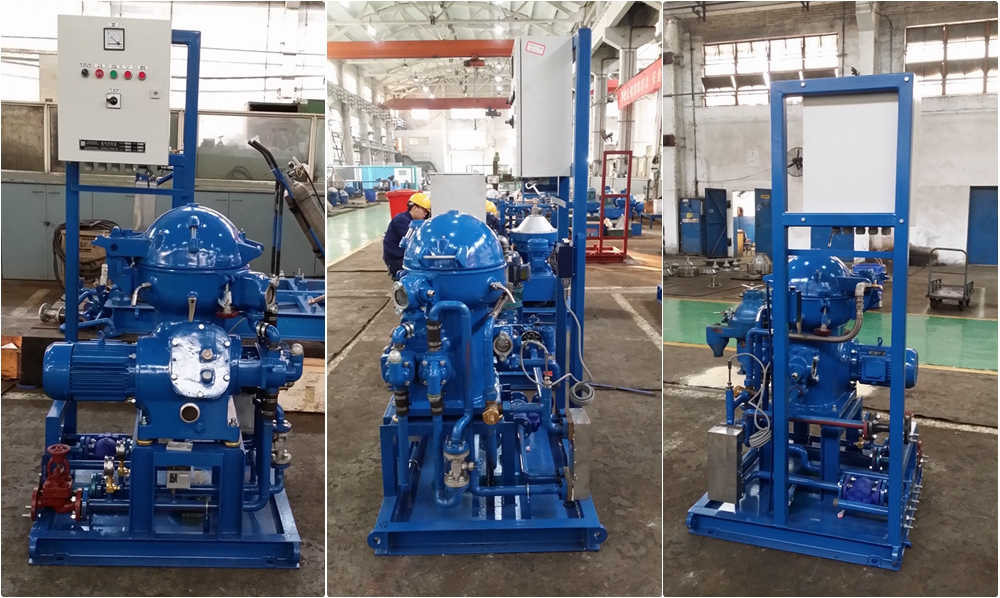

Detailed Images

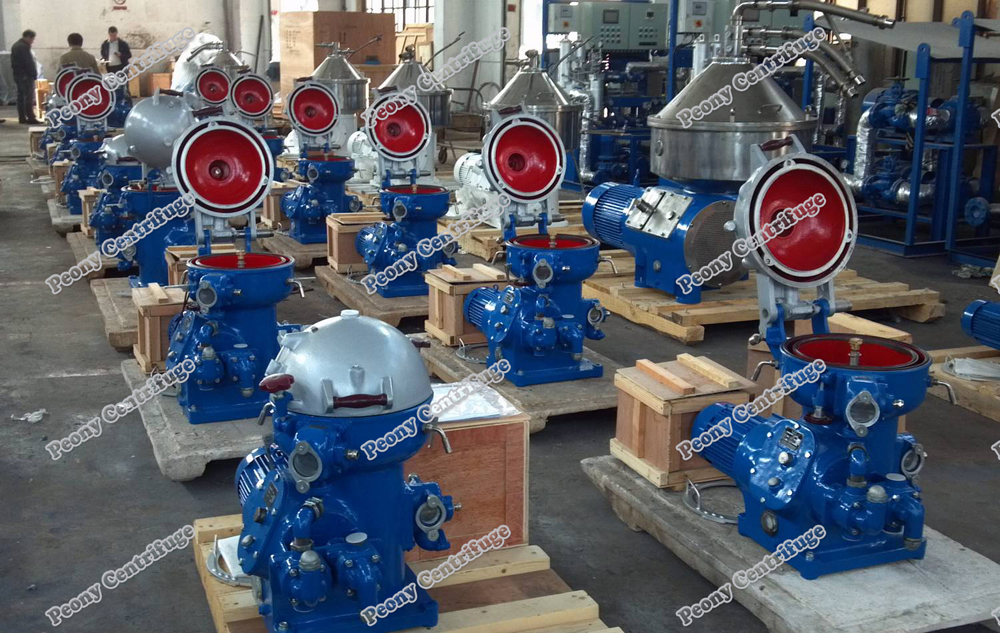

Processing equipment

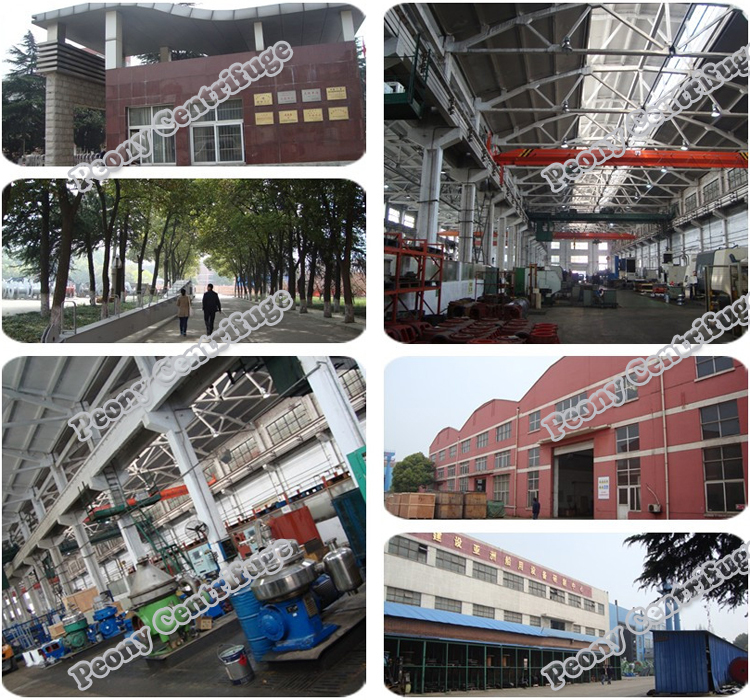

Our factory
Guarantee
Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction,pursuing the best quality and producing the best product at the same time. We are committed to reward you with a better quality in return for our interest in and faith toward. We will do our utmost for one more stepping forward,based on our infinite services and trust to customers.
